Side View LED
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

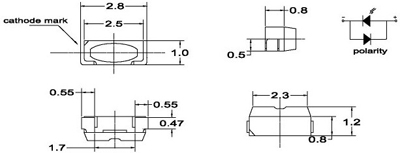

Side View white LED (2.5×1.0×1.2mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-2512LO7CU/A1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
200 |
800 |
110° |
GPT-2512PY7CU/A1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
200 |
800 |
|||
GPT-2512CB5CUQ1/A1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
200 |
800 |
|||
GPT-2512LG5CUQ2/A1 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
1000 |
|||
GPT-2512WCUQ1/A1 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
1000 |
|||

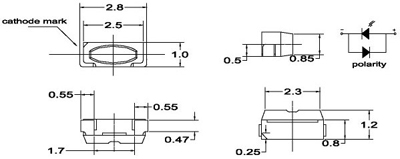

Side View white LED (2.5×1.0×1.2mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-2512LO7CU/A2 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
200 |
800 |
110° |
GPT-2512PY7CU/A2 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
200 |
800 |
|||
GPT-2512CB5CUQ1/A2 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
200 |
800 |
|||
GPT-2512LG5CUQ2/A2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
1000 |
|||
GPT-2512WCUQ1/A2 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
1000 |
|||

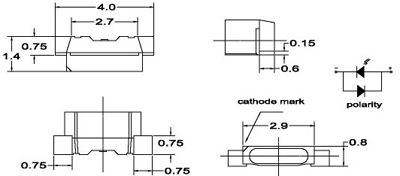

Side View white LED (2.9×1.4×0.8mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-2914LO7CU |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
200 |
800 |
110° |
GPT-2914PY7CU |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
200 |
800 |
|||
GPT-2914CB5CUQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
200 |
800 |
|||
GPT-2914LG5CUQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
1000 |
|||
GPT-2914WCUQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
1000 |
|||
