8mm
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||
8mm Round LED |
UNIT:mm |
|||||||||
 |
||||||||||
| GPT80-LO734S-1 | AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 | 1000 | 40° |
| GPT80-PY734S-1 | AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 | 1000 | |||
| GPT80-CB534ZQ1 | InGaN |
Blue |
465 |
3.2 |
3.6 |
100 | 800 | |||
| GPT80-LG534ZQ2 | InGaN |
Green |
525 |
3.2 |
3.6 |
200 | 1500 | |||
| GPT80-WH534ZQ1 | InGaN |
White |
/ |
3.2 |
3.6 |
200 | 2000 | |||
| GPT80-LO744S-1 | AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
200 | 3000 | 20° |
| GPT80-PY744S-1 | AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
200 | 3000 | |||
| GPT80-CB544ZQ1 | InGaN |
Blue |
465 |
3.2 |
3.6 |
300 | 3000 | |||
| GPT80-LG544ZQ2 | InGaN |
Green |
525 |
3.2 |
3.6 |
300 | 5000 | |||
| GPT80-WH544ZQ1 | InGaN |
White |
/ |
3.2 |
3.6 |
500 | 5000 | |||
8×8mm Round LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
| GPT80N-LO734S-1 | AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 | 1000 | 40° |
| GPT80N-PY734S-1 | AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 | 1000 | |||
| GPT80N-CB534ZQ1 | InGaN |
Blue |
465 |
3.2 |
3.6 |
100 | 800 | |||
| GPT80N-LG534ZQ2 | InGaN |
Green |
525 |
3.2 |
3.6 |
200 | 1500 | |||
| GPT80N-WH534ZQ1 | InGaN |
White |
/ |
3.2 |
3.6 |
200 | 2000 | |||
| GPT80N-LO744S-1 | AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
200 | 3000 | 20° |
| GPT80N-PY744S-1 | AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
200 | 3000 | |||
| GPT80N-CB544ZQ1 | InGaN |
Blue |
465 |
3.2 |
3.6 |
300 | 3000 | |||
| GPT80N-LG544ZQ2 | InGaN |
Green |
525 |
3.2 |
3.6 |
300 | 5000 | |||
| GPT80N-WH544ZQ1 | InGaN |
White |
/ |
3.2 |
3.6 |
500 | 5000 | |||

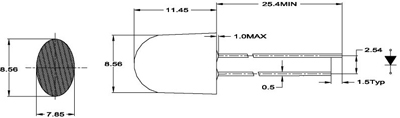

7.85×8.56mm Ellipse LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
| GPT83N-LO734S-1 | AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 | 500 | 80° / 40° |
| GPT83N-PY734S-1 | AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 | 500 | |||
| GPT83N-CB534ZQ1 | InGaN |
Blue |
465 |
3.2 |
3.6 |
100 | 500 | |||
| GPT83N-LG534ZQ2 | InGaN |
Green |
525 |
3.2 |
3.6 |
100 | 800 | |||
| GPT83N-WH534ZQ1 | InGaN |
White |
/ |
3.2 |
3.6 |
100 | 800 | |||
| GPT83N-LO744S-1 | AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 | 1000 | 60° / 40° |
| GPT83N-PY744S-1 | AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 | 1000 | |||
| GPT83N-CB544ZQ1 | InGaN |
Blue |
465 |
3.2 |
3.6 |
100 | 800 | |||
| GPT83N-LG544ZQ2 | InGaN |
Green |
525 |
3.2 |
3.6 |
200 | 2000 | |||
| GPT83N-WH544ZQ1 | InGaN |
White |
/ |
3.2 |
3.6 |
200 | 2000 | |||
