Top View LED
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

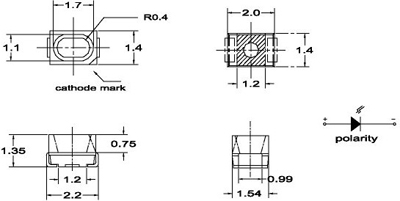

Mini Top View LED (2.0×1.4×1.35mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-2014LO7CU/A1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
200 |
800 |
120° |
GPT-2014PY7CU/A1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
200 |
800 |
|||
GPT-2014CB5CUQ1/A1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
200 |
800 |
|||
GPT-2014LG5CUQ2/A1 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
1000 |
|||
GPT-2014WCUQ1/A1 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
1000 |
|||

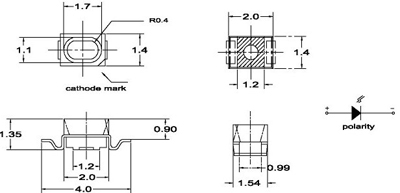

Mini Top View LED (Reverse Gull wing2.0×1.4×1.35mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-2014LO7CU/A2 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
200 |
800 |
120° |
GPT-2014PY7CU/A2 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
200 |
800 |
|||
GPT-2014CB5CUQ1/A2 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
200 |
800 |
|||
GPT-2014LG5CUQ2/A2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
1000 |
|||
GPT-2014WCUQ1/A2 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
1000 |
|||

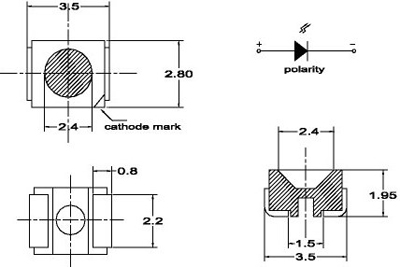

Top View LED (PLCC2 3.2×2.8×1.95mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-3528LO7CU |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
800 |
120° |
GPT-3528PY7CU |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
800 |
|||
GPT-3528CB5CUQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT-3528LG5CUQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1000 |
|||
GPT-3528WCUQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
1000 |
|||

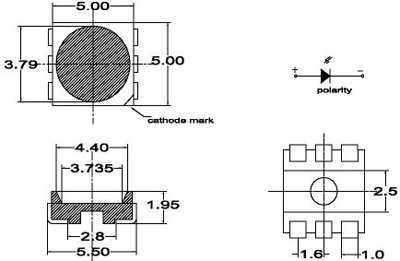

Top View LED (PLCC6 5.0×5.0×1.95mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-5050LO7CU |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
800 |
120° |
GPT-5050PY7CU |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
800 |
|||
GPT-5050CB5CUQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT-5050LG5CUQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1000 |
|||
GPT-5050WCUQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
1000 |
|||
GPT-5050RGBCU |
AlGaInP |
Red |
625 |
2.0 |
2.4 |
100 |
800 |
|||
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1000 |
||||
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||||
