High Power LED
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

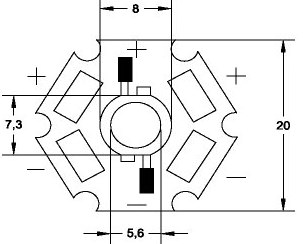

High Power LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT100-LO7409C-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
350 |
0.35 |
3 |
120° |
GPT100-PY7409C-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
0.35 |
3 |
|||
GPT100-CB5409C/Q1 |
InGaN |
Blue |
465 |
3.2 |
7 |
0.35 |
5 |
|||
GPT100-LG5409C/Q2 |
InGaN |
Green |
525 |
3.2 |
7 |
0.35 |
5 |
|||
GPT100-WH5409C/Q1 |
InGaN |
White |
/ |
3.2 |
7 |
0.35 |
5 |
|||
High Power LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT100-LO7409B-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
350 |
0.35 |
3 |
150° |
GPT100-PY7409B-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
0.35 |
3 |
|||
GPT100-CB5409B/Q1 |
InGaN |
Blue |
465 |
3.2 |
7 |
0.35 |
5 |
|||
GPT100-LG5409B/Q2 |
InGaN |
Green |
525 |
3.2 |
7 |
0.35 |
5 |
|||
GPT100-WH5409B/Q1 |
InGaN |
White |
/ |
3.2 |
7 |
0.35 |
5 |
|||
