Rectangular
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

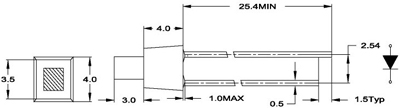

4×5mm Rectangular Type LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT71-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
130° |
GPT71-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT71-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT71-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT71-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT71-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
110° |
GPT71-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT71-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT71-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT71-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||
2×4mm Rectangular Type LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT74-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
90° |
GPT74-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT74-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT74-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT74-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT74-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
60° |
GPT74-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT74-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT74-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT74-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||
