Luminosity Top View LED
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

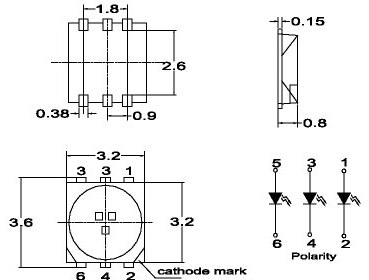

Luminosity Top View LED (PLCC6 3.2×3.2×0.8mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-3232LO7CU |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
800 |
120° |
GPT-3232PY7CU |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
800 |
|||
GPT-3232CB5CUQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT-3232LG5CUQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1000 |
|||
GPT-3232WCUQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
1000 |
|||

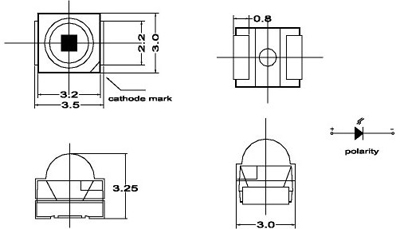

Luminosity Top View LED (3.2×3.0×3.25mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-3530LO7CU |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
500 |
2000 |
60° |
GPT-3530PY7CU |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
500 |
2000 |
|||
GPT-3530CB5CUQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
500 |
1500 |
|||
GPT-3530LG5CUQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
3000 |
|||
GPT-3530WCUQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
3000 |
|||

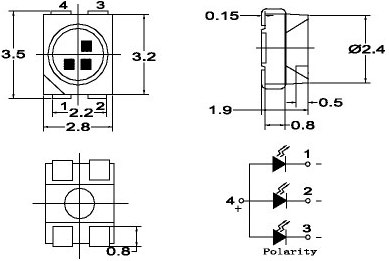

Luminosity Top View LED (PLCC4 3.2×2.8×1.95mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-3528LO7CU/A1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
500 |
2000 |
160° |
GPT-3528PY7CU/A1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
500 |
2000 |
|||
GPT-3528CB5CUQ1/A1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
500 |
1500 |
|||
GPT-3528LG5CUQ2/A1 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
3000 |
|||
GPT-3528WCUQ1/A1 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
3000 |
|||
GPT-3528RGBCU/A1 |
AlGaInP |
Red |
625 |
2.0 |
2.4 |
500 |
2000 |
|||
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
3000 |
||||
Blue |
465 |
3.2 |
3.6 |
500 |
1500 |
|||||

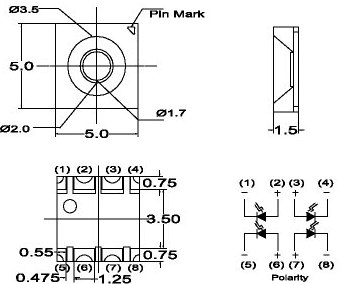

Luminosity Top View LED (5.0×5.0×1.5mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-5050LO7CU/A1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
500 |
2000 |
60° |
GPT-5050PY7CU/A1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
500 |
2000 |
|||
GPT-5050CB5CUQ1/A1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
500 |
1500 |
|||
GPT-5050LG5CUQ2/A1 |
InGaN |
Green |
525 |
3.2 |
3.6 |
500 |
3000 |
|||
GPT-5050WCUQ1/A1 |
InGaN |
White |
/ |
3.2 |
3.6 |
500 |
3000 |
|||

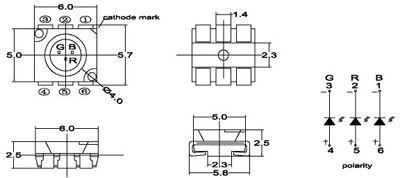

Luminosity Top View LED (PLCC6 6.0×5.0×2.5mm) |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT-6050LO7CU |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
800 |
160° |
GPT-6050PY7CU |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
800 |
|||
GPT-6050CB5CUQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT-6050LG5CUQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1000 |
|||
GPT-6050WCUQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
1000 |
|||
GPT-6050RGBCU |
AlGaInP |
Red |
625 |
2.0 |
2.4 |
100 |
1000 |
|||
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1000 |
||||
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||||
