Flanged
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

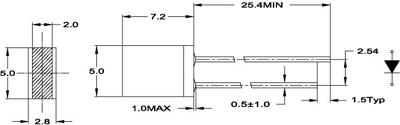

2×5mm Rectangular with flange LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT60-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
140° |
GPT60-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT60-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT60-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT60-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT60-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
120° |
GPT60-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT60-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT60-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT60-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||

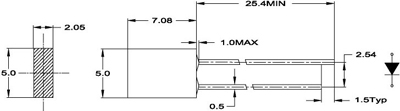

2×5 Rectangular flangeless LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT60N-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
140° |
GPT60N-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT60N-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT60N-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT60N-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT60N-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
120° |
GPT60N-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT60N-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT60N-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT60N-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||

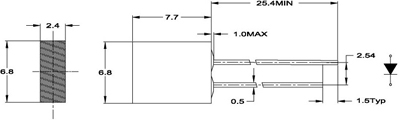

2.4×6.9mm Rectangular flangeless LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT62N-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
140° |
GPT62N-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT62N-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT62N-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT62N-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT62N-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
120° |
GPT62N-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT62N-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT62N-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT62N-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||

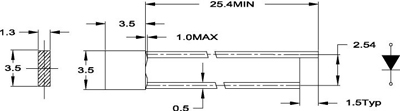

1.3×3.5mm Rectangular flangeless LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT65N-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
140° |
GPT65N-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT65N-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT65N-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT65N-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT65N-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
120° |
GPT65N-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT65N-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT65N-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT65N-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||

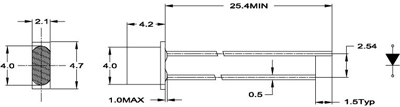

2×4.7mm Rectangular with flange LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT611-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
140° |
GPT611-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT611-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT611-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT611-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT611-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
120° |
GPT611-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT611-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT611-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT611-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||

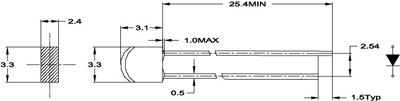

2.4×3.3mm Rectangular flangeless LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT648N-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
300 |
160° |
GPT648N-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
300 |
|||
GPT648N-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
300 |
|||
GPT648N-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT648N-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT648N-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
600 |
140° |
GPT648N-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
600 |
|||
GPT648N-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT648N-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
1000 |
|||
GPT648N-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
1000 |
|||
2×4mm Rectangular flangeless LED |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT649N-LO734S-1 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
500 |
80° |
GPT649N-PY734S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
500 |
|||
GPT649N-CB534ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT649N-LG534ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
800 |
|||
GPT649N-WH534ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
800 |
|||
GPT649N-LO744S-1 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
1000 |
60° |
GPT649N-PY744S-1 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT649N-CB544ZQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT649N-LG544ZQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
2000 |
|||
GPT649N-WH544ZQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
200 |
2000 |
|||
