Reverse Package Top View
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

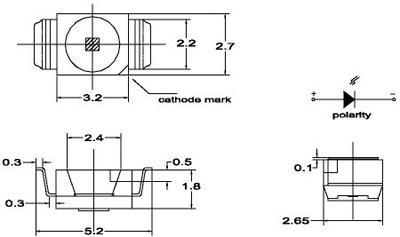

Reverse Package Top View LED (3.2×2.7×1.8mm) |
UNIT:mm |
|||||||||
GPT-3227LO7CU |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
20 |
100 |
800 |
130° |
GPT-3227PY7CU |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
800 |
|||
GPT-3227CB5CUQ1 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
500 |
|||
GPT-3227LG5CUQ2 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1000 |
|||
GPT-3227WCUQ1 |
InGaN |
White |
/ |
3.2 |
3.6 |
100 |
1000 |
