Circuit Board Indicator
Part Number |
Chip |
Lens color |
VF(V)at IF=20mA |
Iv(mcd) |
Viewing Angle 2θ 1/2 |
|||||
Material |
Emitted Color |
λD(nm) |
Typ. |
Max. |
at IF=mA |
Min. |
Max. |
|||

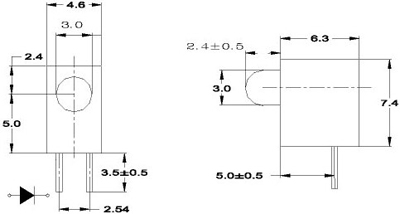

3mm Circuit Board Indicator |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT32-LO714S/H90 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
1000 |
60° |
GPT32-PY714S/H90 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT32-CB514SQ1/H90 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT32-LG514SQ2/H90 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT32-LO744S/H90 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
100 |
2000 |
30° |
|
GPT32-PY744S/H90 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
2000 |
|||
GPT32-CB544SQ1/H90 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT32-LG544SQ2/H90 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
3000 |
|||

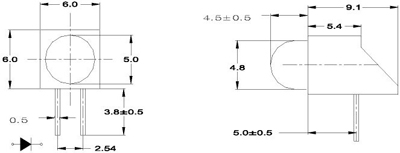

5mm Circuit Board Indicator |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT50N-LO713/H100 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
1000 |
40° |
GPT50N-PY713/H100 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT50N-CB513Q1/H100 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT50N-LG513Q2/H100 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT50N-LO743/H100 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
100 |
2000 |
20° |
|
GPT50N-PY743/H100 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
2000 |
|||
GPT50N-CB543Q1/H100 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT50N-LG543Q2/H100 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
3000 |
|||

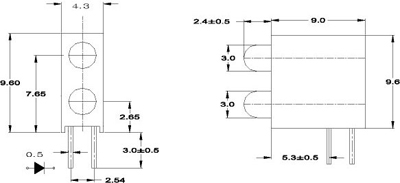

3mm 2pcs Circuit Board Indicator |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT30N-LO714S/2H3 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
1000 |
40° |
GPT30N-PY714S/2H3 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT30N-CB514SQ1/2H3 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT30N-LG514SQ2/2H3 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT30N-LO744S/2H3 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
100 |
2000 |
20° |
|
GPT30N-PY744S/2H3 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
2000 |
|||
GPT30N-CB544SQ1/2H3 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT30N-LG544SQ2/2H3 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
3000 |
|||

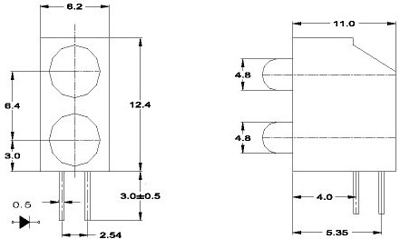

5mm 2pcs Circuit Board Indicator |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT33N-LO713/2H94 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
1000 |
40° |
GPT33N-PY713/2H94 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT33N-CB513Q1/2H94 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT33N-LG513Q2/2H94 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT33N-LO743/2H94 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
100 |
2000 |
20° |
|
GPT33N-PY743/2H94 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
2000 |
|||
GPT33N-CB543Q1/2H94 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT33N-LG543Q2/2H94 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
3000 |
|||
3mm 3pcs Circuit Board Indicator |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT32-LO714S/3H134 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
1000 |
60° |
GPT32-PY714S/3H134 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT32-CB514SQ1/3H134 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT32-LG514SQ2/3H134 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT32-LO714S/3H134 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
100 |
2000 |
30° |
|
GPT32-PY714S/3H134 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
2000 |
|||
GPT32-CB514SQ1/3H134 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT32-LG514SQ2/3H134 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
3000 |
|||

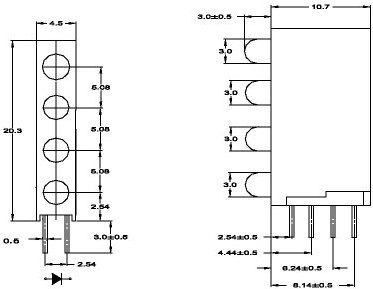

3mm 4pcs Circuit Board Indicator |
UNIT:mm |
|||||||||
 |
 |
|||||||||
GPT32-LO714S/4H144 |
AlGaInP |
Red |
625 |
Color Diff. |
2.0 |
2.4 |
20 |
100 |
1000 |
60° |
GPT32-PY714S/4H144 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
1000 |
|||
GPT32-CB514SQ2/4H144 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
800 |
|||
GPT32-LG514SQ2/4H144 |
InGaN |
Green |
525 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT32-LO744S/4H144 |
AlGaInP |
Red |
625 |
Water Clear. |
2.0 |
2.4 |
100 |
2000 |
30° |
|
GPT32-PY744S/4H144 |
AlGaInP |
Yellow |
590 |
2.0 |
2.4 |
100 |
2000 |
|||
GPT32-CB544SQ2/4H144 |
InGaN |
Blue |
465 |
3.2 |
3.6 |
100 |
1500 |
|||
GPT32-LG544SQ2/4H144 |
InGaN |
Green |
525 |
3.2 |
3.6 |
200 |
3000 |
|||
